Many forms and specifications,
one design standard

From P0.7 to P15.6: indoor fine pitch, transparent, freeform and outdoor. Pixel pitch, cabinet size, screen form and support structure are designed to the project.

Freeform Transparent Fine Pitch Outdoor Fine Pitch Outdoor Large Format
P0.7minFinest pixel pitch (COB · MIP)
10,000nitOutdoor large-format peak brightness
88%Maximum transparency
50daysAverage production lead time
Spiral curved LED ribbon in a shopping mall atrium

Freeform Display

Flexible

Displays for curved and sculptural spaces

Cabinet structure and joint angles are designed to the screen's curvature, giving natural curves with minimal seams. Cylinders and spheres included.

  • Pixel pitchP1.5 – P4
  • FormsCurved · corner · cylinder · sphere · arch · ribbon
  • CurvatureConcave or convex, minimum R500 mm
  • CabinetDie-cast aluminium, custom-designed per project
P1.5 – P4Custom forms
Transparent LED banner on a pedestrian bridge railing

Transparent Display

Transparent

Transparent displays that keep
the openness of glass

The glass becomes a screen while its transparency stays. Installed without replacing the glass.

  • Pixel pitchP3.9 – P15.6
  • Transparency65 – 88%
  • BrightnessUp to 6,500 nit
  • ApplicationsStorefronts · curtain walls · atrium railings · corner facades
P3.9 – P15.665 – 88% transparencyNo glass replacement
Portrait fine-pitch LED signage in a hotel lobby

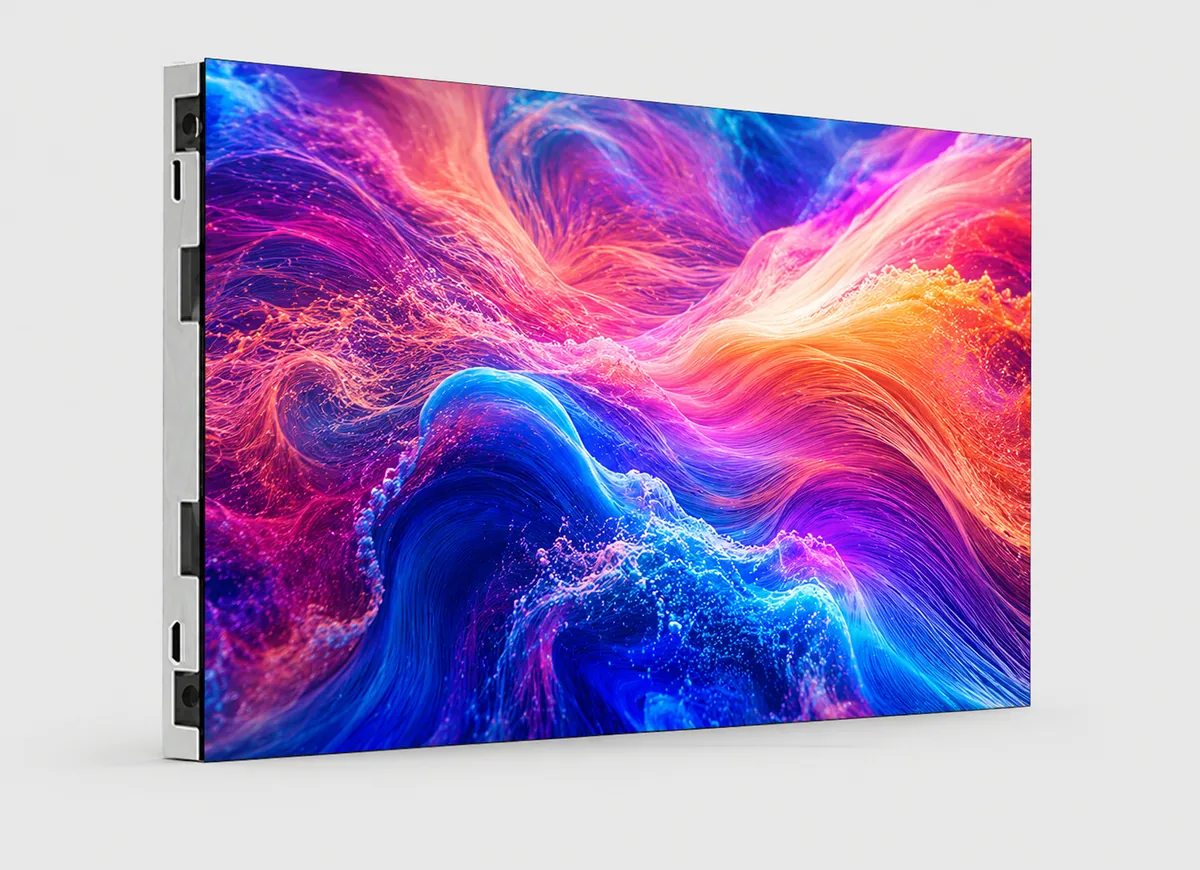

Fine Pitch Display

Indoor COB & SMD

High-resolution displays
for close viewing

Indoor screens people stand close to. Seams minimised, front-service structure.

  • COBP0.7 – P1.8 · protective surface layer, resistant to impact and humidity
  • SMDP1.2 – P3.9

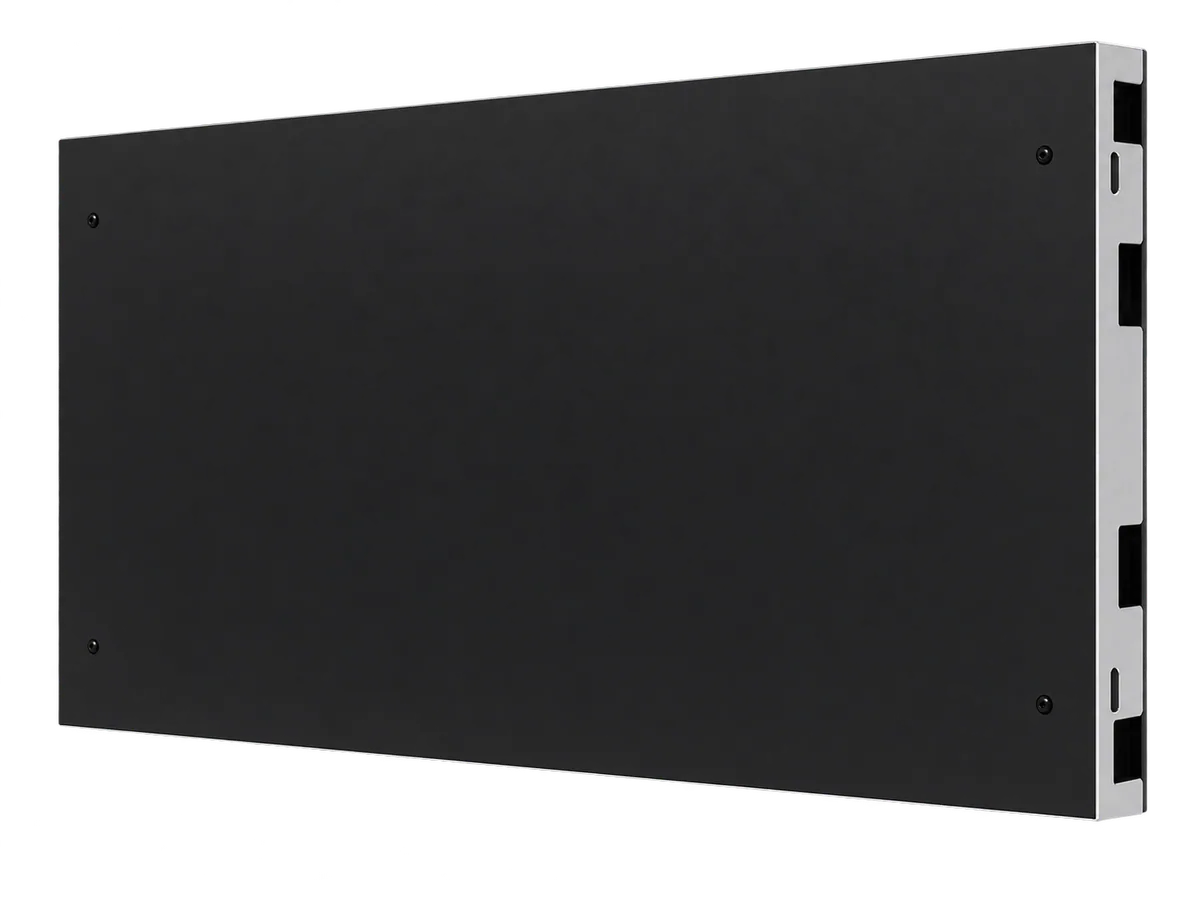

  • ServiceFront service (rear optional)
  • ApplicationsLobbies · meeting rooms · control rooms · broadcast studios · retail
COB P0.7 – P1.8SMD P1.2 – P3.9Front service
Street-level outdoor LED display

Outdoor Fine Pitch

Outdoor MIP

Outdoor displays with high brightness
and environmental durability

Fixed outdoor displays designed for direct sun, rain and salt air. Suited to street-level signage at pedestrian eye height.

  • Pixel pitchP0.7 – P1.8
  • Brightness4,500 nit
  • ProtectionIP65
  • ApplicationsStreet DOOH · commercial facades · transport hubs
P0.7 – P1.8IP654,500 nit
Large outdoor LED media facade on a tower

Outdoor Large Format

Outdoor SMD

High-brightness displays
for large-scale advertising

Building-scale advertising screens, readable in daytime direct sun.

  • Pixel pitchP2.9 – P10
  • BrightnessUp to 10,000 nit
  • FormsFlat · curved · corner wrap-around
  • ApplicationsMedia facades · rooftop billboards · plazas
P2.9 – P10Up to 10,000 nit

Specification Overview

Key specifications by product line

The ranges below show what each product line covers. Final specifications are fixed per project, based on environment, viewing distance and content.

Coverage by product line — finalised per project
Product lineTypePixel pitchBrightnessTypical useNotes
FreeformFlexibleP1.5 – P4Per projectCurved · corner · cylinder · sphereMin. R500 mm · custom cabinets
TransparentTransparentP3.9 – P15.6Up to 6,500 nitStorefronts · curtain walls · facades65 – 88% transparency · no glass replacement
Fine PitchIndoor COBP0.7 – P1.8Per projectLobbies · meeting rooms · control roomsFront service
Fine PitchIndoor SMDP1.2 – P3.9Per projectIndoor signage · studiosFront service
Outdoor Fine PitchOutdoor MIPP0.7 – P1.84,500 nitStreet DOOH · facadesIP65
Outdoor Large FormatOutdoor SMDP2.9 – P10Up to 10,000 nitMedia facades · billboardsReadable in direct sun

Which Pitch, Which Form?

Tell us about
your space.

We'll review the right pixel pitch, form and cabinet layout for your project conditions.

sales@mimolux.co.kr Start a project
